Distributed Temperature Sensing (DTS)

Raman based DTS systems utilize spontaneous Raman scattering generated by the interaction between light (photons) and molecular vibration modes (optical photons). It provides insight into your processes by using optical fibers as sensing elements.

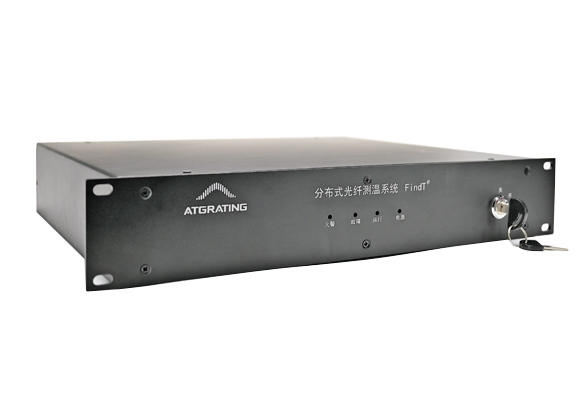

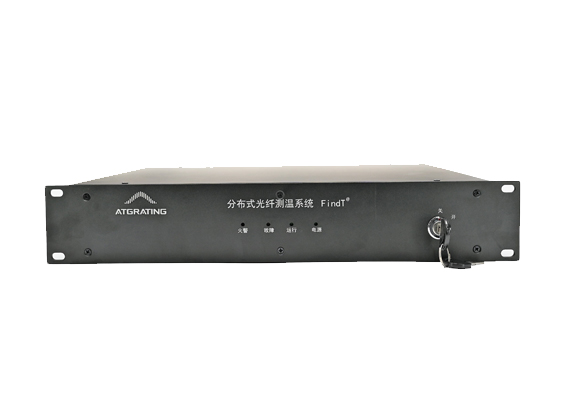

The DTS AG8405 is a compact static detector with industry-grade designed for long-term operations of high reliability, stability. It is the integration of fiber optics, optoelectronics and high-speed signal acquisition. It's of high stability, compaction and low power consumption due to its embedded software and hardware.


The AG8405 has been widely applied in industries of electric power, transportation, petrochemical, coal, metallurgy and so on.


Features of Distributed Temperature Sensing (DTS)

  • High Integration

  • Small Space Resolution

  • Stable and Reliable

  • Very Low Power Consumption

  • High Dynamic Range

Application of Distributed Temperature Sensing (DTS)

  • Pipeline Leakage Detection

  • Natural Gas

  • Oil Pipeline

  • Well Temperature Detection

  • Oil Tank

  • Tunnel

Specification of Distributed Temperature Sensing (DTS)

Parameters

Unit

Value

Distance Range

Kilometer

2, 4,5, 8, 10, 12, 15, 20, 30

Response Time

Second

<30

Space Resolution

Meter

1

Positioning Accuracy

Meter

0.5

Temperature Resolution

0.1

Temperature Accuracy

1

Number of Channel

--

1 / 2 / 4 / 8 / 16

Optical Fiber

--

50/125um、62.5/125um

Optical Interface

--

E2000/APC

Telecommunications Interface

--

RS232、RS485、RJ45、Ethernet

Dimension

--

2U

Weight

Kg

3

Input

--

24V / 1A


Product Inquiry
