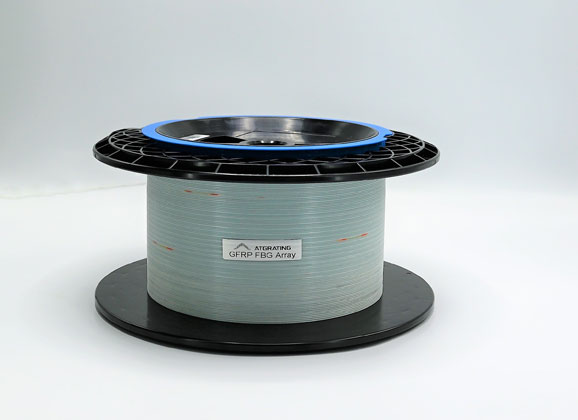

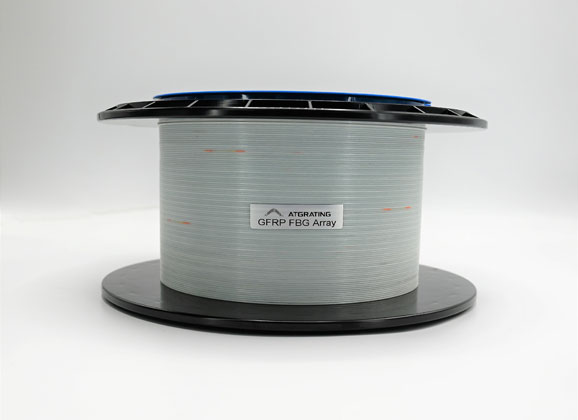

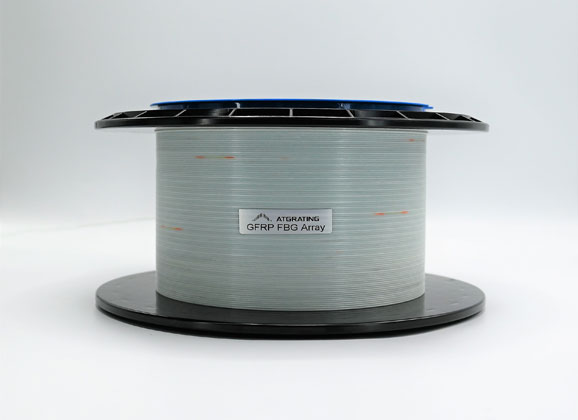

GFRP FBG Array

GFRP FBG Array

Distributed FBG cable is a great solution for any application to monitor sensing points for high strain. The FBG array is embedded in a glass fiber reinforced plastic (GFRP) so that expandability and compressiveness of FBG freely changes as the strain. The package has the advantages of protection to the fiber and making the sensor robust and easy to operate and install.

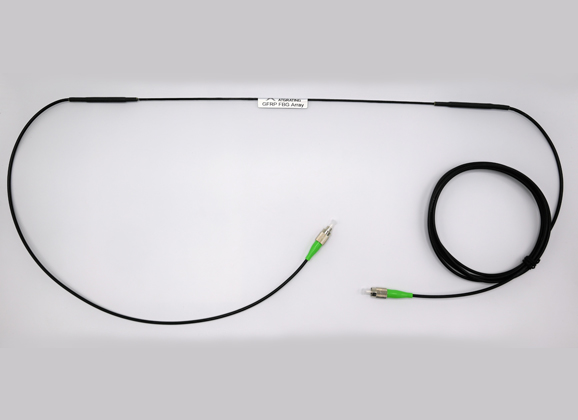

The FBG array is integrated with GFRP and becomes a sensing cable. The sensing cables can be provided with standard fiber optics connectors and standard armored pigtails and can be multiplexed together in series and/or parallel to achieve the sensing network required.


Features of GFRP FBG Array

  • Easy to Install

  • Long Lifetime

  • Rugged

  • High Survivability in Harsh Environments

  • Small Size

Application of GFRP FBG Array

  • Roads

  • Airport Runways and Taxiways

  • Asphalt Pavements

  • Concrete Pavements

  • Pipelines

Specifications of GFRP FBG Array

Parameters

Unit

Values

Diameter

mm

1.0, 1.5, 2.0, 3.0

Number of FBG

points

Max.30 on one GFRP Rod

FBG Spacing

mm

Customized

FBG Wavelength Gap

nm

Min. 1.5nm

Tensile Strain

με

+/-100,00 με (for Dia.1mm)

Maximum longitudinal load

N

500

Operating Temperature

°C

-40 to +160

Minimum Bend Radius

mm

150

Connectors

--

Standard types available
