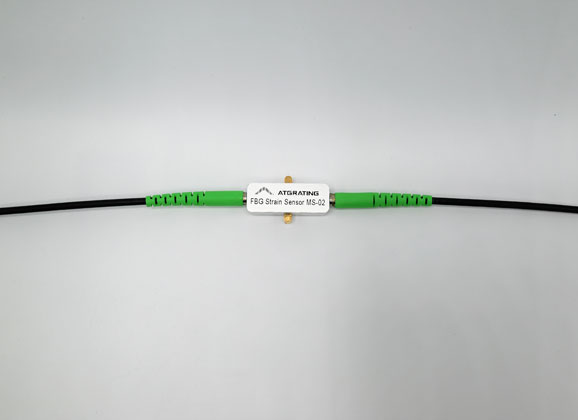

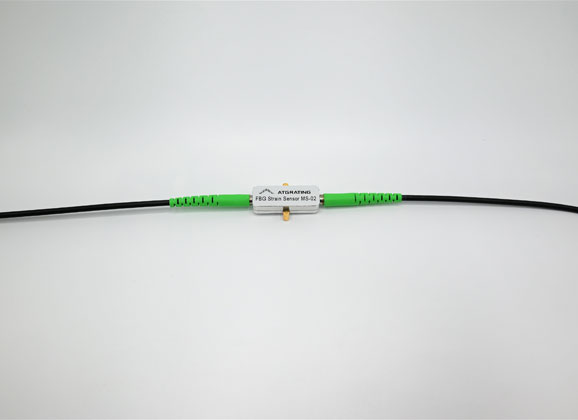

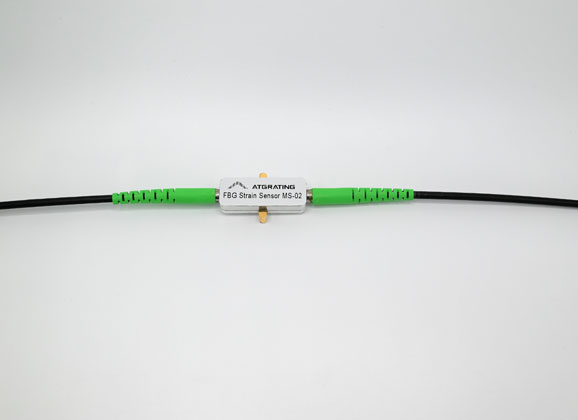

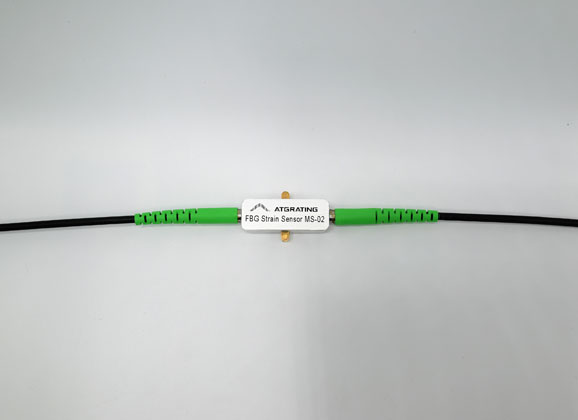

FBG Strain Sensor MS-02

Surface mounted FBG strain sensor MS-02 is mainly used to monitor the stress and deformation of various structural surfaces. The sensor is packaged with high-performance stainless steel material, and is installed on the surface of the monitored object by gluing or spot welding without causing any damage to the surface of the measured object. Due to its small size and convenient installation, it is more suitable for small spaces and laboratories, and occasions where the object to be measured is not easily damaged.


Features of FBG Strain Sensor MS-02

  • High precision, reliability, and stability

  • Minimal temperature drift

  • All-optical measurement, intrinsically safe

  • Long-term zero point stability

  • Easy to install

Application of FBG Strain Sensor MS-02

  • Surface strain measurement of steel structure

  • Bridge structural health monitoring

  • Surface strain measurement of polymer materials

  • Pre-stressed load measurement

  • Strain measurement of pipes and storage tanks

Specification of FBG Strain Sensor MS-02


ParameterUnitValue
Center Wavelengthnm1460 ~ 1610
Rangeμε±1500
Resolutionμε0.01% F.S.
Accuracyμε0.1% F.S.
Material--Stainless steel
Dimensionmm82(L) x 13(W) x 7(H)
Installation--Paste or welding
Pigtail LengthmΦ3mm armored cable, 1m at both ends, or customize
Optical Connector--FC/APC, or customize
Operating Temperature°C-20 ~ +80


The sensor accuracy does not contain error sources originating from the read-out equipment.
